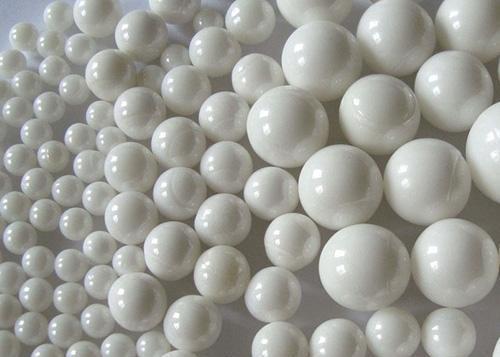

Take the RTSM-30BJ equipment of Shanghai Root Electromechanical as an example, it is recommended to use 95% zirconia beads as the grinding medium. The particle size and filling amount can be determined by referring to the technical parameters. This machine can use 0.6mm zirconia beads at least, and the actual media selection is based on customer needs. The medium filling amount is 72 kg to 78 kg, and it is recommended to add about 75.6 kg in general.
Precautions
1. Put the material to be ground into the grinding chamber, then put in an appropriate amount of zirconium beads, and then gradually add zirconium beads after the grinder runs. The filling amount is generally 70%-85% of the inner volume of the grinder barrel
2. During the operation of the equipment, the grinding medium is susceptible to wear. When the quality of the material decreases and the current value of the host machine decreases, it indicates that the grinding medium is seriously worn and the grinding medium must be refilled.
3. When the amount of supplemented grinding media exceeds 50% of the first input amount, it should be replaced completely, and new ones can be re-inserted. If necessary, the replaced grinding media can be cleaned and screened, and qualified ones can be reserved for future use. reduce manufacturing cost.
4. Because the grinding medium is a fragile item, all zirconium beads should be screened regularly, and it is recommended to screen it every six months.
5. When the worn out beads are found to leak out during the production process, check the screen and the size of the grinding media.
6. Different types, different contents and different sizes of grinding media cannot be mixed.
